Data Center Electrical Monitoring: From Utility Feed to Rack
A guide to electrical monitoring in data centers: what to measure, at what resolution, and why. Three tiers from basic BMS to sub-cycle waveform intelligence.
Every data center I walk into has some form of electrical monitoring. The question I always start with is not whether monitoring exists, but what it can actually tell you. Because there is a gap between "I can see my load" and "I know which rectifier is degrading," and most monitoring stacks sit on the wrong side of that gap.
This is the field guide I wish someone had given me when I started evaluating monitoring architectures for customers. Three tiers, what each one actually does, and where each one falls short.
The distribution path you are monitoring
Before we talk about monitoring approaches, here is the infrastructure from utility feed to rack. Each level has different monitoring requirements, and the decisions you need to make at each level determine what resolution you need.
| Level | Equipment | Function |
|---|---|---|
| Utility entrance | Main switchgear, meters | Utility interconnection, billing metering |
| Medium voltage | Transformers, switchgear | Step-down from utility voltage |
| Generator/ATS | Generators, transfer switches | Backup power, automatic transfer |
| UPS | Rectifiers, batteries, inverters | Uninterruptible power, power conditioning |
| Distribution | PDUs, panelboards, RPPs | Power distribution to rows and racks |
| Branch circuit | Individual breakers, whips | Power delivery to individual racks |
| Rack/IT | PSUs, servers, GPUs | IT load consumption |
Most operators have excellent visibility at the top of this stack (utility entrance, generators) and diminishing visibility as you move down. By the time you reach branch circuits, you are often working blind. That is exactly where the equipment health information lives.

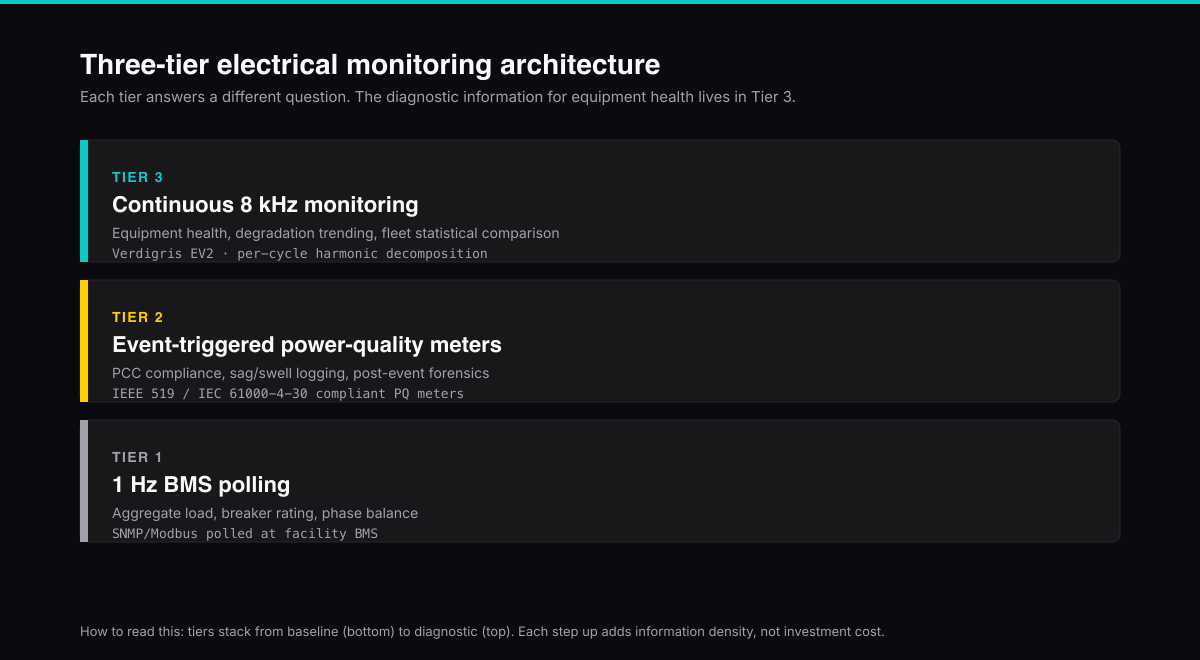

Tier 1: your BMS (1 Hz polling)
This is the baseline. Every facility has it. Your BMS polls electrical parameters at major distribution points via Modbus, BACnet, or SNMP. Typically 1 sample per second or slower.
You get: total load per panel, per PDU, per floor. Power consumption trends. Whether equipment is on or off. Whether readings are within alarm thresholds.
You miss: everything that happens between those 1-second samples. Harmonic distortion. Sub-second power quality events. Gradual degradation that stays within your alarm thresholds. The difference between a healthy UPS and one with a degrading rectifier.
Tier 1 is necessary. It provides the consumption data you need for billing, capacity tracking, and basic alarming. But I want to be honest about what it is: a consumption measurement system, not an equipment health system. It tells you how much power is being used. It does not tell you whether the equipment delivering that power is in good shape.
Tier 2: power quality meters (event-triggered)
Tier 2 adds dedicated PQ meters at key distribution points: the utility entrance, transformer secondaries, UPS outputs. These are your Dranetz, Fluke, or Hioki meters.
Internal sampling varies (1 kHz to 1 MHz for transient capture), but data logging is typically at 1-second or 10-second intervals. Waveform data is captured when thresholds are crossed, not continuously.
Standards: IEC 61000-4-7 for harmonic measurement, IEEE 519-2014 for total harmonic distortion limits, IEC 61000-4-30 for power quality measurement methods.
You get: power quality compliance data. Harmonic distortion levels at specific measurement points. Event forensics: what happened during a sag, swell, or transient.
You miss: equipment health between events. Circuit-level granularity (most PQ meters are installed at distribution points, not on individual circuits). The gradual degradation that precedes equipment failure but never crosses an event trigger threshold.
Tier 2 is important for compliance and forensics. It answers "What happened?" after a power quality event. It does not answer "What is about to happen?" for equipment trending toward failure. I have seen facilities with Tier 2 meters at every major distribution point that still could not tell you which rectifier in a 20-unit panelboard was degrading.
Tier 3: sub-cycle waveform intelligence (8 kHz continuous)
This is where the gap closes. Tier 3 adds continuous 8 kHz waveform capture at the circuit level. 8,000 samples per second, continuously. No gaps, no triggers, no polling intervals.
You get: full waveform data on every monitored circuit, every electrical cycle. Harmonic content through the 25th order. Equipment-specific degradation signatures. Fleet-wide behavioral baselines. The specific circuit, among hundreds, that is trending toward failure.
Equipment health becomes visible through electrical signatures. UPS rectifier degradation from harmonic analysis. Motor bearing wear from current signature changes. Transformer stress from winding condition indicators.
Tier 3 does not replace Tier 1 or Tier 2. It does not provide BMS integration for building automation. It does not provide compliance-grade PQ measurement under IEC standards. What it adds is the equipment health intelligence layer that the other tiers cannot provide by design.
How they work together
Here is the honest comparison. I include this in every customer conversation because the framing matters: these tiers are additive, not competitive.
| Capability | Tier 1 (BMS) | Tier 2 (PQ meters) | Tier 3 (8 kHz) |
|---|---|---|---|
| Consumption tracking | Yes | Partial | Yes |
| Load balancing | Yes | No | Yes |
| Compliance reporting | No | Yes | No |
| Event forensics | No | Yes | Yes |
| Equipment health monitoring | No | No | Yes |
| Degradation detection | No | No | Yes |
| Circuit-level granularity | Partial | No | Yes |
| Fleet-wide comparison | No | No | Yes |
| Advance failure warning | No | No | Yes |
Tier 1 answers: "How much power is being used?" Tier 2 answers: "Is the power quality acceptable?" Tier 3 answers: "Is the equipment delivering that power healthy?"
That is the result I keep coming back to in customer conversations. The three tiers are complementary because their detection domains are different. Tier 1 answers the consumption question accurately. Tier 2 answers the compliance question accurately. Neither one is designed to answer the equipment health question, and adding more dashboards or tighter thresholds to Tier 1 and Tier 2 does not change what physics they can observe. Tier 3 adds the measurement dimension that makes equipment-level degradation visible.
Deciding how far up the stack to go
Every data center needs Tier 1. That is not a question.
Tier 2 adds value for facilities with compliance requirements, utility interconnection agreements, or a history of power quality events.
Tier 3 adds value when equipment reliability is critical and unplanned downtime is unacceptable. For AI workloads running on GPU-dense compute, the cost of a single UPS failure or transformer fault can exceed the cost of the entire monitoring infrastructure.
The question I would ask: given the criticality of what your infrastructure supports, can you afford to monitor consumption and power quality alone, without knowing whether the equipment itself is healthy?
Deploy alongside what you have
Verdigris does not replace your existing Tier 1 or Tier 2 infrastructure. EV2 meters install non-invasively on existing circuits with no downtime. The Signals platform provides the Tier 3 intelligence layer within the first week.
See what your current monitoring stack is missing. Request a demo to add the validated layer.
